UnitVehicle Mounted FOD Radar

The use of 94GHz synthetic aperture radar technology for high-resolution imaging of the runway supports vehicle speeds of up to 80km/h, with a target detection size of better than 1cm. This technology does not conflict with airport communication, navigation, and automatic driving frequency bands. With the cooperation of high-precision navigation positioning devices, sub-meter level positioning accuracy can be achieved, significantly reducing the probability of manual inspection omissions and improving cleaning quality.

Product features

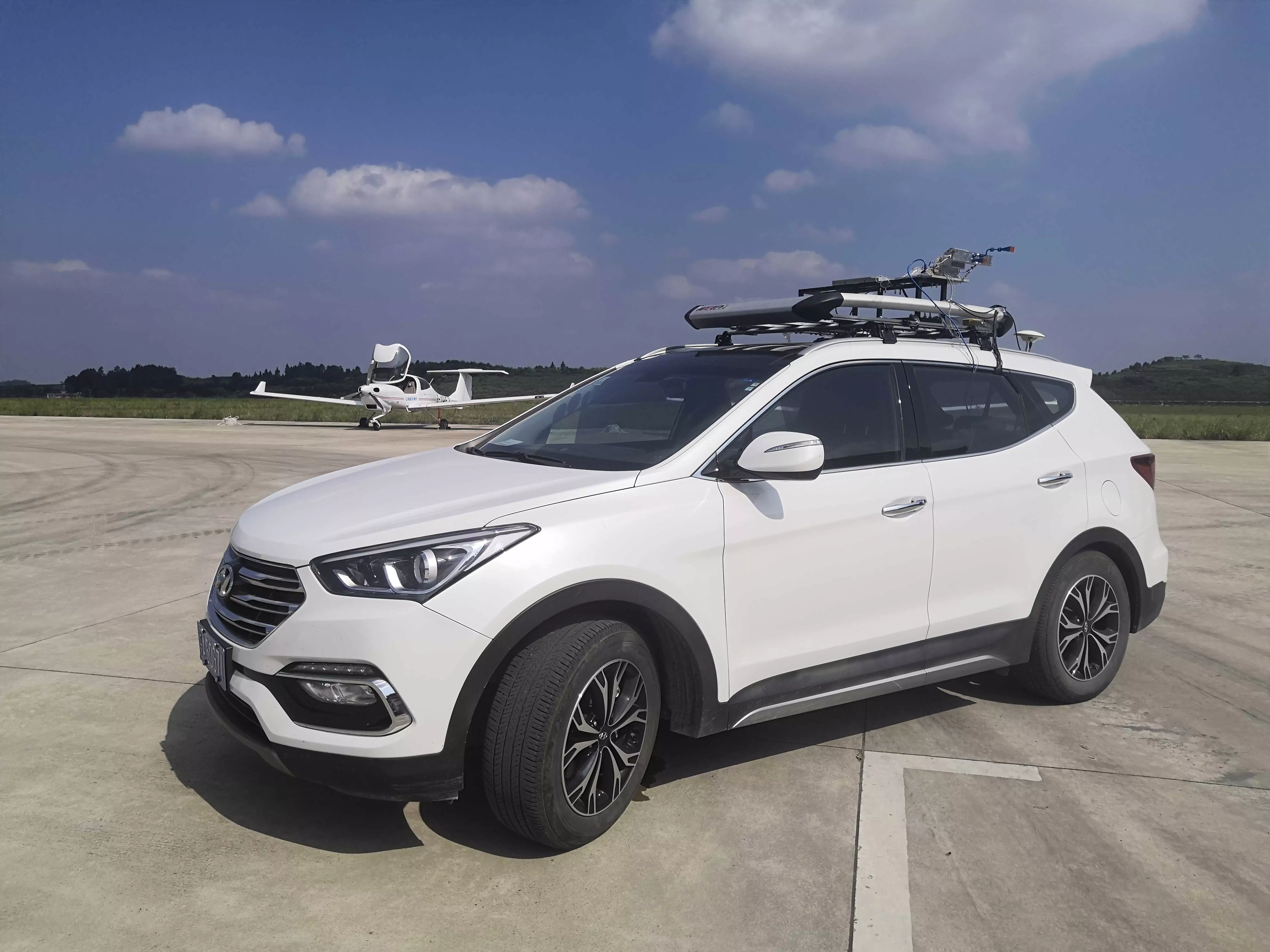

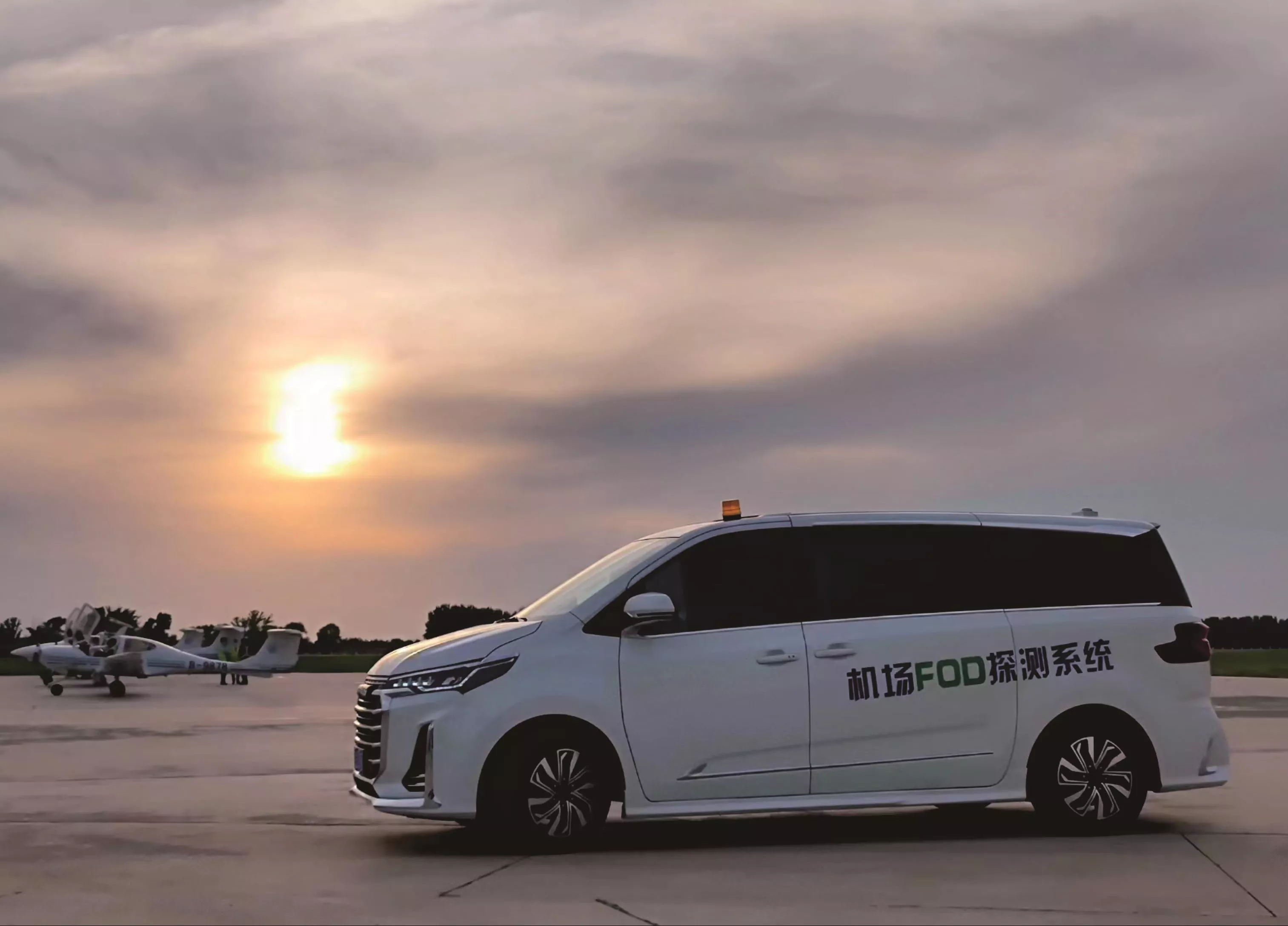

◆Using automobiles as the platform and millimeter wave radar as the core; ◆Utilizing the principle of synthetic aperture radar to perform millimeter wave two-dimensional high-resolution imaging of airport runway surfaces;

◆Utilizing radar and optical fusion sensing technology to improve recognition accuracy;

◆The vehicle can travel at a maximum speed of 80km/h and can detect foreign objects as small as 1cm;

Work Flow And User Interface


◆Step 1: The vehicle travels along the planned route. ◆Step 2: Radar automatically detects and scan. ◆Step 3: Foreign object is detected and alarmed.
◆Step 4: Alarm information is automatically stored.
◆Step 5: User interface displays foreign object information.
◆Step 6: Automatically plans cleaning path.
◆Step 7: Manual confirmation and disposal.
◆Step 8: Disposal information is automatically stored
