AVIATION INTELLIGENT INTEGRATED SHELTER

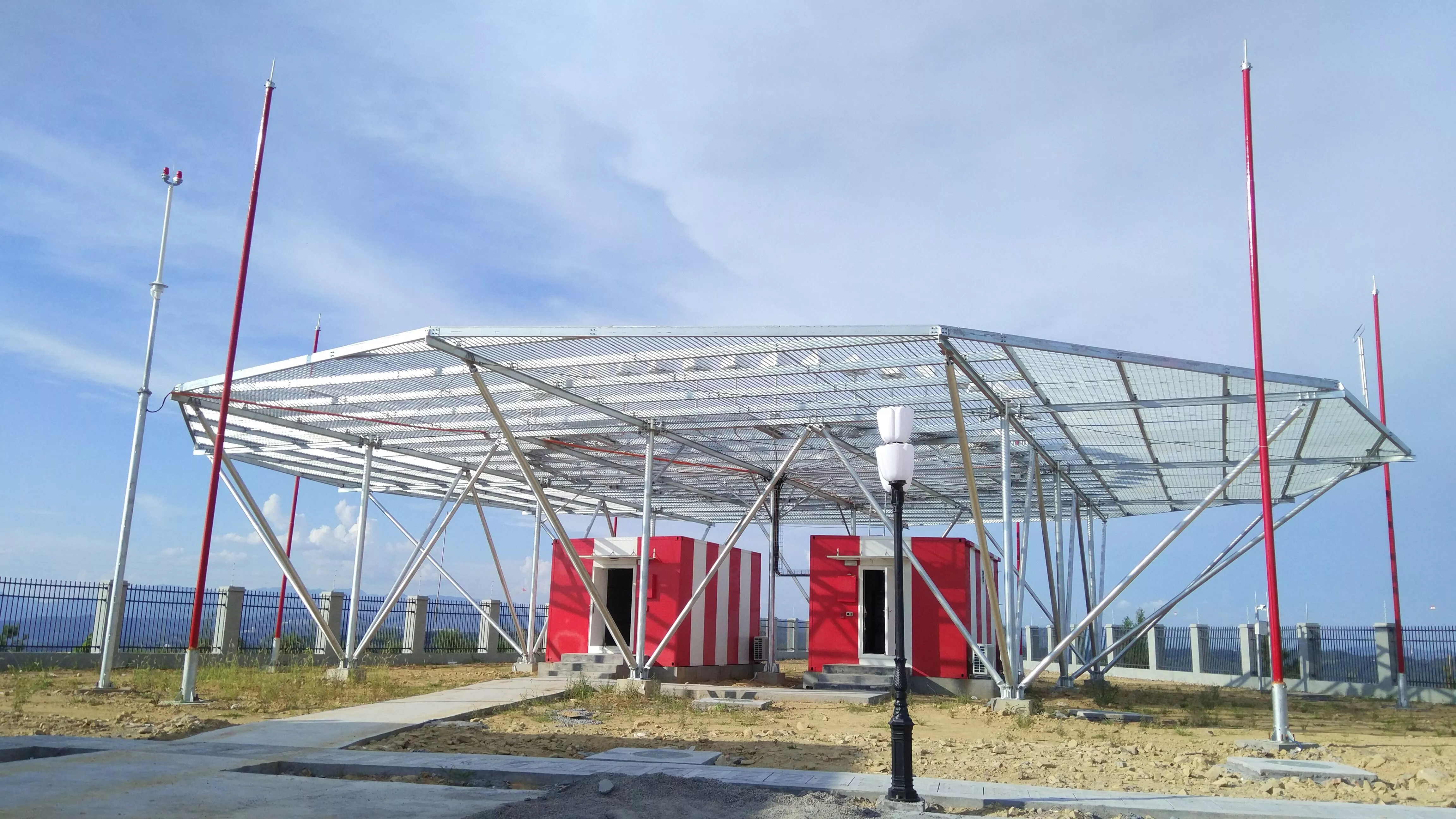

The aviation intelligent integrated shelter is designed for the characteristics of civil aviation computer rooms and can be used in most stations at airports, such as directional stations, glide slope stations, omnidirectional beacon stations, and so on.

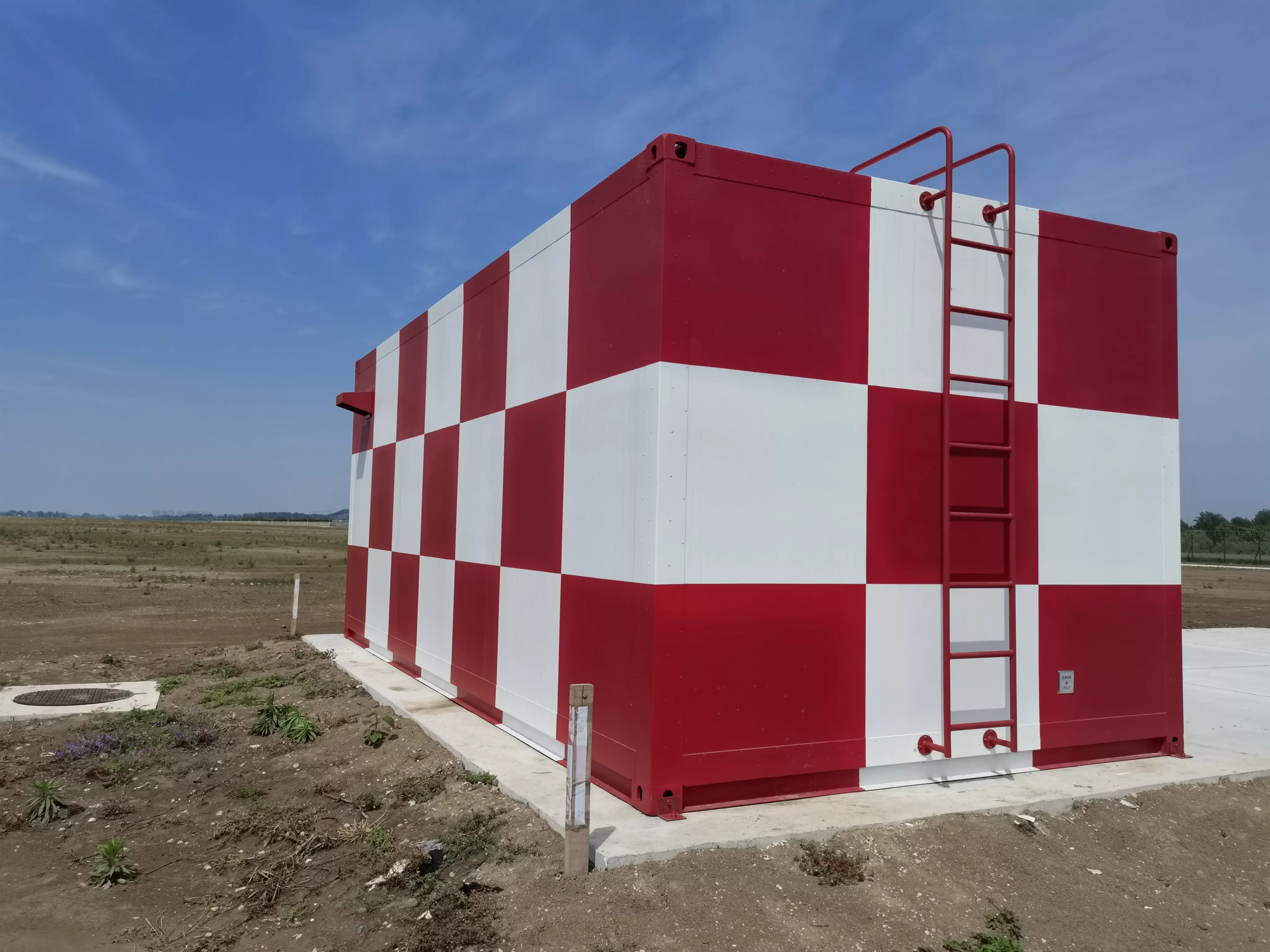

Siyuan shelter adopts advanced design concepts, and through high-standard procurement positioning and strict production quality control, uses aluminum alloy shelter main body, intelligent environmental control system and in-shelter equipment to jointly ensure a safe and reliable operating environment for navigation equipment. The pre-installed equipment in the cabin includes all equipment and accessories except for the communication and navigation equipment. It can be supplied as a whole or configured according to the user's needs.



The design of the Siyuan shelter fully considers the needs of transportation, installation, equipment layout, and use, and can fully meet the requirements of airport construction and users.

SOLUTION

The Intelligent Integrated shelter of civil avation is composed of three parts：


◆ IOT monitoring system

It includes the internal power, environment, fire protection, access control and other shelter status monitoring software, which is connected to the outside through the optical fiber network.


◆ Shelter equipment

Distribution box, UPS, unattended base station air conditioning, automatic gas fire suppression system, etc.


◆ Shelter mechanism

According to actual needs, a standard computer room has been developed to meet the various needs of construction, technology, and installation.

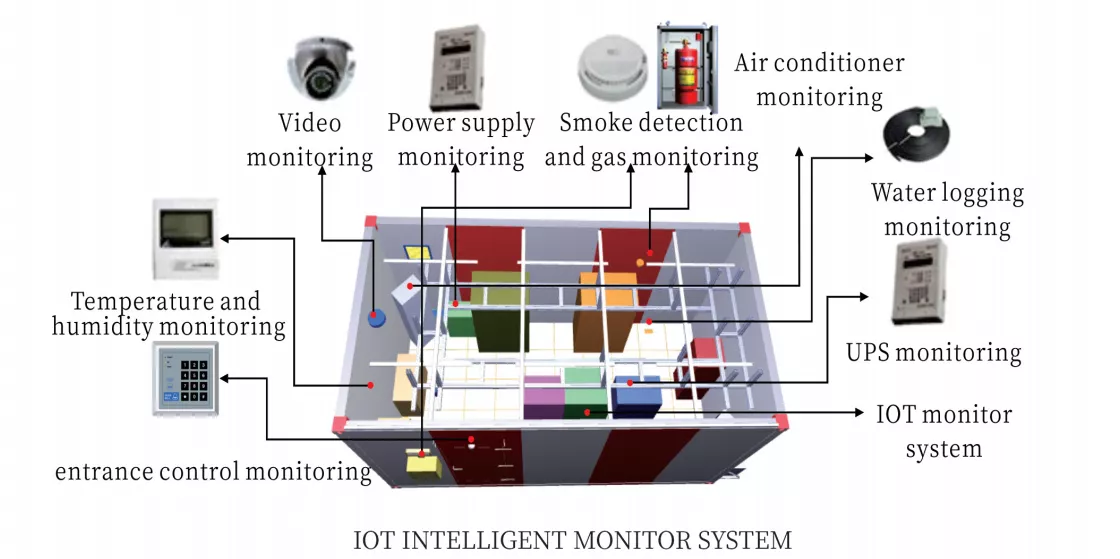

IOT INTELLICENT MONITOR SYSTEM
◆ High hardware level: The system adopts industrial hardware products with excellent performance, reliable installation, anti vibration and anti-seismic;
◆ Good electromagnetic compatibility: it will not affect the work of other equipment under any working state;
◆ Good electrical isolation performance: it does not reduce the AC / DC isolation of the monitored device and the isolation between DC power supply and the system.

◆ Good electrical isolation performance: Does not reduce the AC/DC isolation and DC supply isolation of the monitored equipment. Reliable lightning protection and overload protection devices, suitable for indoor and outdoor environments from -20℃ to +50℃ / 20%~95% (customized for exceeding range)

◆ Good reliability and scalability: It utilizes a general-purpose computer system and dedicated devices with RS485/232 standard interfaces, ensuring high communication stability and reliability. The hardware is modular, allowing for flexible configuration modes and strong external communication capabilities. The device layout is optimized for convenient installation and maintenance.
